EIONS

3GPP LTE-Advanced & IEEE 802.16 Standard
3gpp Release 10/12
Supports FWA, high mobility, rural, urban and semi-rural
Supported Bands: B48 (CBRS)
Supported Channels: 5/10/15/20 MHz
Upto 30 dBm Maximum transmit power per antenna port
4Tx 4Rx Radio Configuration ; Multi-User MIMO
200 Mbps per sector; supports upto 20+20 MHz
Interfaces : 1 x Gigabit RJ45 Ethernet Port, 1 x Optical SFP port, 1 x 100M RJ45 Ethernet port
Interoperable with standalone EPC, MobiEPC 2000 or Option to use Integrated EPC
GigE interface for connection to Gigabit TeraLink Backhaul radios
Ruggedized outdoor enclosure, IP67
Spectrum Analyzer; DCS (for unlicensed bands)

3GPP LTE-Advanced & IEEE 802.16 Standard
3gpp Release 10/12
Supports FWA, high mobility, rural, urban and semi-rural
Supported Bands: B42/43/46/48 (CBRS)
Supported Channels: 5/10/15/20 MHz
Max Tx Power
- B42,43,48: Upto 30 dBm per antenna port
- B46: Upto 20 dBm per antenna port
4Tx 4Rx Radio Configuration; Multi-User MIMO
200 Mbps per sector; supports upto 20+20 MHz
Interfaces : 1 x Gigabit RJ45 Ethernet Port, 1 x Optical SFP port,
- 1 x 100M RJ45 Ethernet port.
Integrated EPC
Interoperable with standalone EPC, MobiEPC 2000
GigE interface for connection to Gigabit TeraLink Backhaul radios
Ruggedized outdoor enclosure, IP67
Spectrum Analyzer; DCS (for unlicensed bands)

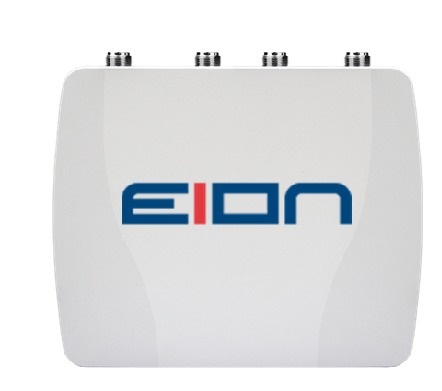

MobiLink LTE eNodeB
