Solutions For Enterprise & Government

Solutions For Enterprise & Government

Whether it's connecting multiple locations of an enterprise or linking buildings within a business park, EION can help you realize the full benefits of wireless networks. With its portfolio of advanced broadband wireless systems available in a choice frequency bands (2.4 GHz, 3.5 GHz WiMAX, and 5.8 GHz), EION can help meet your mission-critical networking needs. EION products do much more than conventional wireless data networking devices, making them the best choice for use in your high-speed wireless network. Ideal for both indoor and outdoor applications, EION's enterprise solutions seamlessly connect your enterprise - without the need for landline infrastructure. EION’s outdoor, building-to-building wireless connectivity solutions are field-proven, and considered to be the most superior in the industry.

Government organizations at all levels are under intense pressure to make taxpayer dollars go further. For government organizations that need to share information across multiple locations, significant savings are possible on costs associated with maintaining a fast, secure and reliable network.

Go wireless with EION and realize the full benefits of broadband wireless networks.Wireless building-to-building networks are ideal for government departments that need to share policies, secure databases, financial documents, desktop applications and other information quickly and efficiently across two or more remote locations, such as police stations, fire halls, libraries, administration offices, city works departments or service depots.

Broadband wireless links are also well suited for government-led community-based networks that bring high speed Internet access to businesses and residences in urban and rural locations.

Wireless building-to-building networks are ideal for any modern enterprise with business needs to share; files, video, databases and e-mail across two or more remote locations with minimal effort and cost. EION Wireless provides a wide range of wireless network products that are particularly well suited for use in the following applications:

    Education (school boards, university campuses, tech schools)

    Transportation (railways, marine, commuter services, airports)

    Municipal and federal government

    Connecting central offices to remote branch offices

    Suburban businesses and business parks

    Real estate management companies with multi-dwelling buildings

    Medical (hospitals and clinics)

    Financial services (banks, brokerage houses)

    Emergency or temporary communication services

Enterprise & Government Products

Street WiFi

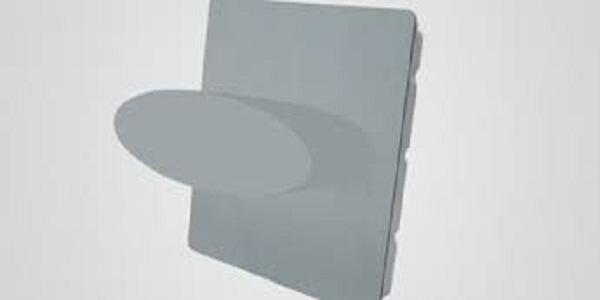

EION Street WiFi is an outdoor 802.11 WiFi hotspot designed for optimal coverage of urban streetscapes. The innovative helical antenna signal pattern provides exceptional coverage along the street without wasting power. The circular polarization of the integrated antenna means that end user devices such as laptops, smart phones and tablets do not need to be ‘aimed’ at the Street WiFi access point.

Applications include outdoor WiFi coverage, municipal free-wifi zones, outdoor campus wifi for schools and hospitals, wifi hotspots in airports, trains stations and bus stations or when facing coverage design challenges with traditional omni-antenna based WiFi solutions.

The product is fully integrated for simple outdoor installation on a pole, wall or telephone pole or light standard. Street WiFi variants are available in 2.4 GHz, 5.8 GHz or dual-band operation.

Tunnel WiFi

EION Tunnel WiFi is an outdoor 802.11 WiFi hotspot designed for optimal coverage inside tunnels and underground locations. The innovative helical antenna signal pattern provides exceptional coverage through the tunnel without wasting power. Typically due to reflections in tunnels such as an underpass, campus tunnel or subway station, the wireless signal is attenuated. In EION Tunnel WiFi, the reflections in fact help propagation by strengthening the signal. Additionally the circular polarization of the integrated antenna means that end user devices such as laptops, smart phones and tablets do not need to be ‘aimed’ at the Street WiFi access point.

Tunnel WiFi is ideal for deploying WiFi coverage to the following locations; underpasses, campus tunnels, mining, subway stations, elevator shafts, sewer systems or any confined spaces where traditional coverage models are inefficient or impractical.The product is fully integrated for simple outdoor installation on a pole, wall or telephone pole or light standard. Tunnel WiFi variants are available in 2.4 GHz, 5.8 GHz or dual-band operation.


Mobile 4G Broadband Solution

EION Wireless offers transformational 4G network solutions including end-to-end WiMAX access, IP backhaul, and mobile core technologies fully supported with a portfolio of professional lifecycle services.

The Star4G WiMAX platforms enable fixed, nomadic and mobile services based on IEEE 802.16e-2005 standards, and are positioned to help operators deliver highly competitive and innovative mobile broadband triple-play services for green field networks, or as an overlay onto existing services.

EION Wireless high-performance Star4G base stations, together with a rich variety of subscriber devices, are a pre-validated and tightly integrated suite of products that can be tailored to your business requirements. Since they are certified by the WiMAX Forum, interoperability with other devices can be incredibly straightforward.

With best-of-breed transmission performance and highly expandable coverage options, Star4G base stations are available in flexible, split-mount configurations supporting diversity or multiple-input-output (MIMO) antenna options.

The Star4G 16e portfolio of products is WiMAX Forum Network Working Group (NWG) Access Service Network (ASN) interoperable, with Quality of Service (QoS) and 802.1Q VLAN packet priority, supporting Voice over IP (VoIP), video and other multimedia applications.

    Worldwide support for 2.3, 2.5, 3.3, 3.5 and 3.6-3.8GHz frequency bands

    Industry-standards compliant: Fixed/Nomadic/Mobile IEEE 802.16e-2005 with WiMAX Forum certification

    Delivers full mobility and advanced Triple Play services, supported by end-to-end QoS

    Rich portfolio of indoor non-line of sight (NLOS) and outdoor mounted subscriber units suited to match all deployment scenarios

    High-performance transmission for best coverage and ARPU

    Fully integrated into NetBoss XT and ProVision™ Management Systems portfolios

    Fully supported by EION Wireless’ professional services for end-to-end WiMAX and 4G network design, deployment and management


StarPlus is the next evolution of EION's popular LibraPlus product line redesigned to meet the needs of today's bandwidth hungry consumers. The StarPlus series of products is made up of base stations and cost effective subscriber stations capable of delivering throughputs of up to 300 Mbps.

Trustlink is a proprietary protocol developed by EION Wireless. TrustLink is specifically designed for high-throughput outdoor, multimedia rich applications. It provides several advantages for outdoor wireless communication that improve factors such as interference avoidance, spectral efficiency and wireless security and adds Quality of Service.


StarPlus 3Gig is designed for fixed service provider and mission critical enterprise applications in the 3.x GHz licensed bands. The product is available in fixed point-to-multipoint or point-to-point topologies.

StarPlus 3Gig can be deployed in the North American 3.65 GHz lightly licensed band, or is configurable anywhere from 3.3 to 3.8 GHz for use in licensed bands worldwide. With channel sizes of 5, 10, 20 and 40 MHz the StarPlus 3Gig is capable of over the air data rates of up to 300 Mbps. By combining EION’s TrustLink™ Technology with MIMO operation, the StarPlus delivers truly unbeatable performance for the delivery of bandwidth intensive multimedia data.


High-powered family of dual-band 2.4/5.8 GHz WiFi Access Points for ubiquitous coverage at data rates up to 300 Mbps. StarAccess integrates with StarPlus for seamless backhaul.

    Outdoor/Indoor APs support dual-band operation in 2.4 GHz & 5.8 GHz.

    Support for IEEE802.11a/b/g/n client devices - up to 300 Mbps data rate per radio.

    Dual-polarity MIMO (Multiple-In/Multiple Out) antenna with high receive sensitivity.

    Capable of more than 3 km of WiFi coverage.

    Ethernet bridging at Gigabit speeds to StarPlus for flexible backhaul options.

    Variety of antenna options: SISO/MIMO in 60°, 90°,120° and 360° (Omni).

    Total 8 SSIDs - Enable operators to create tiered services to different user or traffic types.

    Remote software upgradable.

    Ruggedized outdoor enclosure, IP67 option available for operation in harsh environmental conditions

Network Management System

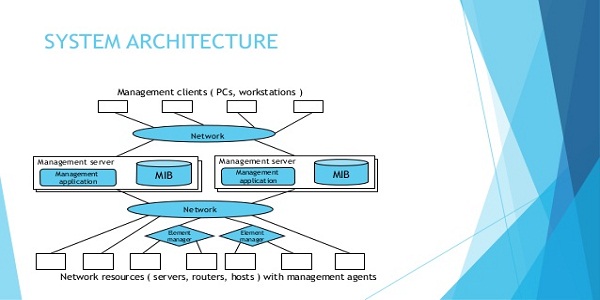

The EION network management system, Constellation, provides full TMN architecture. The implementation is a three - tier architecture, based on SNMP v2, RMI, Java, JDBC and other open interfaces. This provides simple integration of Constellation into existing management and billing systems of the service providers or adaptation to the specific requirements of the environment.

SNMP management is installed on a networked PC or workstation and enables a network administrator to remotely manage EION Wireless units. SNMP network management software is available commercially and as shareware.
