EION MOBILINK LTE CPEs are cost effective and advanced CPE data unit with built-in LTE MIMO antennas. EION MobiLink LTE CPEs uses latest 3GPP releases and categories upto Release 12 with 256QAM modulation on the Downlink, 64QAM modulation on the Uplink, 4x4 MIMO and carrier aggregation. MobiLink LTE CPE supports multiple TDD band operations and multiple operator network support is possible which allows deployment across the country with different operators. They meet the demands of fixed wireless access deployments and high-speed wireless backhaul challenges by the 4G service operators.
MOBILINK LTE CPE
MOBILINK LTE CPE
Overview
MobiLink 9750 CBRS Band Support CAT13/15 Outdoor LTE CPE
- 3GPP Release 12, Cat 13/15
- Frequency Band: B38, B40, B41, B42, B43, B48
- Channel Bandwidth: 5, 10, 15 and 20 MHz
- Output Power: 23dBm per Tx
- Antenna Gain: 13dBi in 3.5 GHz, 11dBi in 2.5GHz
- Operation Mode: 4Rx, 2Tx, 4x4 MIMO DL &CA
- 1 x RJ45 Gigabit Ethernet Port
MobiLink 9750U CAT12 LTE-U Outdoor CPE
Unlicensed 5GHz Band Operation
- Unlicensed Band operation
- Cost-effective, compact design, high data throughput with built-in high- gain LTE antenna
- 3GPP Release 12, CAT12
- Frequency Band: B46 (LTE-U 5GHz)
- Output Power: 21dBm per Tx
- Antenna: Integrated, 20dBi gain 4Rx/2Tx
- Operation Mode: 4Rx, 2Tx, 4x4 MIMO DL &CA
- 1 x RJ45 Gigabit Ethernet Port
- IPv4 and IPv6 DS-Lite Support
- TR-069 and Web device management support
- L1: DL MIMO 4 x 4
- L2 & L3: Multiple APN; PLMN and Cell selection

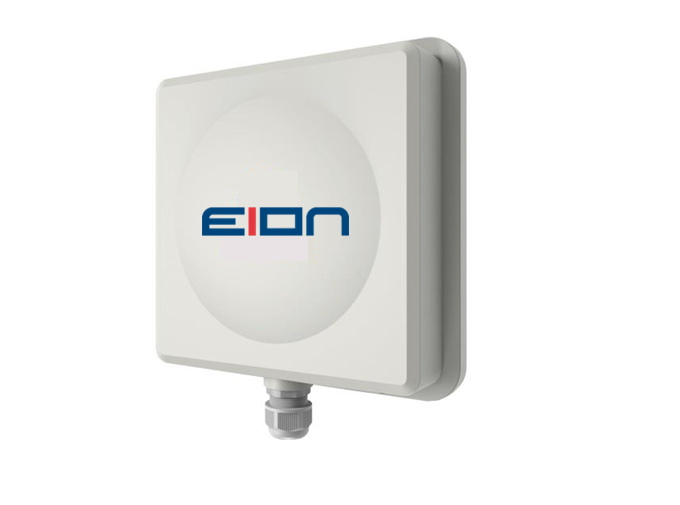

MobiLink 9720 Cat12 Outdoor LTE CPE
- Cost-effective & compact design with built-in high-gain LTE antenna
- 3GPP Release 12, Cat 12
- Frequency Band: B42, B43, B48 (3.4 to 3.8GHz)
- Channel Bandwidth: 5, 10, 15 and 20 MHz
- Output Power: 23 dBm per Tx
- Antenna Gain Options (Integrated):
- 13 dBi
- 17 dBi
- 20 dBi (1Tx 2Rx)
- DL MIMO 4x4
- 1 x RJ45 Gigabit Ethernet Port
- IPv4 and IPv6 DS-Lite Support
- TR-069 and Web device management support
- L2 & L3: Multiple APN; PLMN and Cell selection
- QOS: Non-GBR, GBR
MobiLink 9700 CBRS Band Support CAT6 Outdoor LTE CPE
- 3GPP Release 10/11, Cat 6
- Frequency Band: B40, B41, B42, B43, B48
- Channel Bandwidth: 5, 10, 15 and 20 MHz
- Output Power: 23 dBm per Tx
- Antenna Gain: 15 dBi
- Operation Mode: 2Rx, 1Tx, DL MIMO 2x2
- 1 x RJ45 Gigabit Ethernet Port

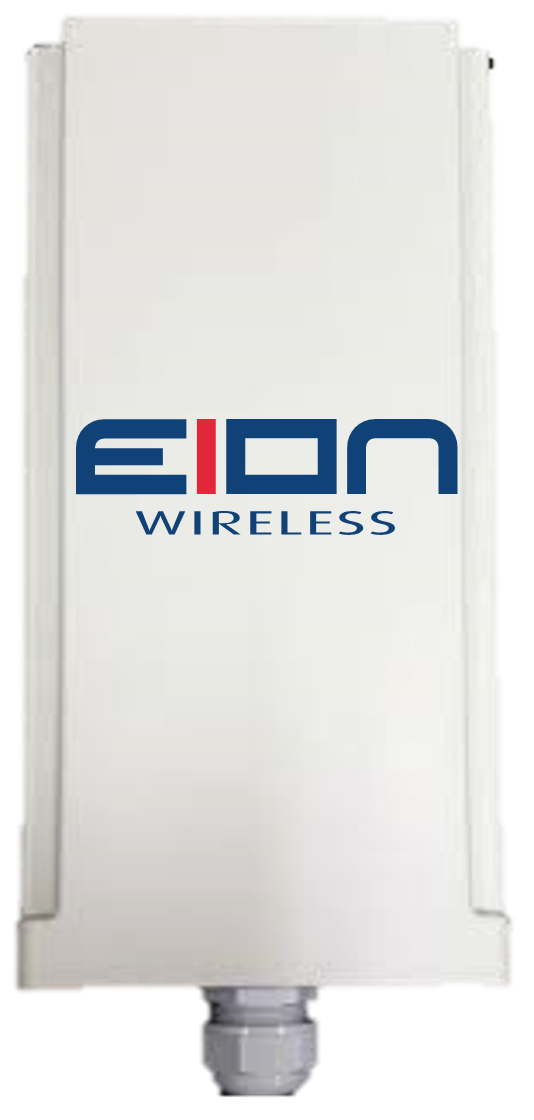

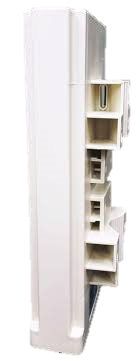

MobiLink 9690 Cat5 Outdoor LTE CPE
- Cost-effective & compact design with built-in LTE antenna
- 3GPP Release 9, Cat 5
- Frequency Band: B40, B41, B42, B43
- Channel Bandwidth: 5, 10, 15 and 20 MHz
- Output Power: 23 dBm per Tx
- Antenna Gain: 11 dBi Built-in
- Operation Mode: TDD, 2Rx, 1Tx, DL MIMO
- L1: DL MIMO 2x2
- 1 x RJ45 Gigabit Ethernet Port
- Multiple APN; PLMN and Cell selection
- QOS: Non-GBR, GBR
- UL and DL Modulation: QPSK, 16QAM, 64QAM
Datasheet

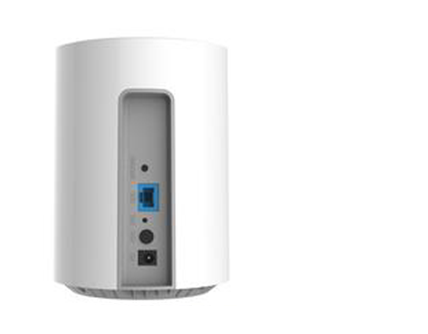

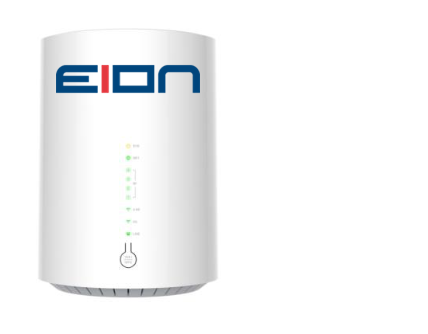

EION ML9690 CAT5 Outdoor LTE CPE-v2.2MobiLink 4400D CAT7 LTE Indoor CPE
- Radio Access: 3GPP Release 10
- Frequency Band: B3/7/20/28/38/40/41/42/43
- Channel BW: 1.4, 3, 5, 10, 15, 20 MHz
- Operation Mode : TDD/FDD, 1Tx, 4Rx, 4x4 MIMO
Modulation DL & UL: QPSK, QAM16, QAM64
Inter and Intra band CA Support - Max Tx Power: 23dBm per antenna port
- Antenna Gain: 2 - 5 dBi (700-2700MHz) 5 - 6 dBi (B42, 43, 48)
- Data Interface: 1 RJ45 10/100/1000M ETH Port
- WiFi Interface (Router):
- Radio Access : 802.11b/g/n (2x2 MIMO)
- Output Power:15± 1dBm
- Antenna : 3 dBi built-in antenna
- Max Users : 10
Datasheet

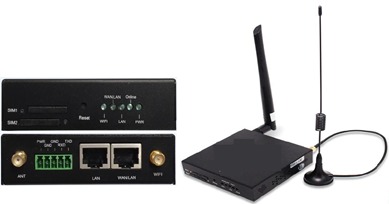

EION ML4400D CAT7 Indoor CPE v4EION MobiLink 4600 Indoor CAT4 4G LTE Router
FDD TDD CAT4 4G LTE Router; 2x2 MIMO
- Supported Bands:
- LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20
- LTE TDD: B38/B39/B40/B41
- GPRS/EDGE/UMTS/HSDPA/HSUPA/HSPA+
- Dual SIM Automatic Failover
- Wi-Fi supports AP, client, Repeater, Repeater Bridge mode
- BGP, OSPF routing
- Supports VPN server and client, IPSec, GRE
- AES 128 Encryption
- Support APN/VPDN
- Bandwidth:
- LTE: DL 150Mbps, UL 50Mbps
- DC-HSPA+: DL 42Mbps, UL 5.76Mbps
- HSPA+: DL 21Mbps, UL 5.76Mbps
- HSDPA: DL 7.2Mbps, HSUPA: UL 5.76Mbps
- UMTS: 384Kbps
- Transmit Power: <23dBm
- Receiver Sensitivity: <-108dBm
- Wi-Fi Interface:
- Radio Access: 802.11b/g/n
- Transmit Power: 20dBm(11n), 24dBm(11g), 26dBm(11b)
- Bandwidth: up to 150Mbps
- Receiver Sensitivity: <-72dBm
